TBR TIRES

LZ300

LZ300 is a free rolling trailer tire. Its special pattern design enables exceptional wet grip. Optimised tread area provides resistance against irregular wear. Strong carcass structure is resistant to cuts and stone retention. Its special compound promises longevity.

0%
    LZ300

    TECHNICAL HIGHLIGHTS

    • Optimized tread design provides resistance against irregular wear by balancing the pressure equally under load.

    • Lateral sipes provide short braking distance.

    • Circumferential grooves drain water quickly and efficiently.

    • Five circumferential ribs provide resistance against irregular wear.

    • High-strength carcass with completely steel frame provides long life and retreadability.

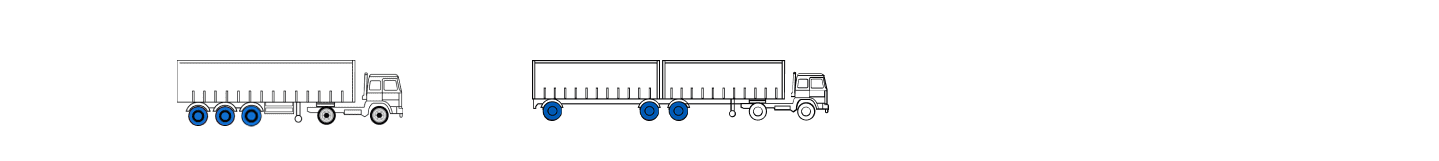

    POSITION / APPLICATION

    LZ300

    ALL SIZES TRUCK AND BUS

    MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE M+S SNOW FLAKE EU TIRE LABEL
    SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
    81700 435/50 R19.5 160J 9000 N/A 100 14.00 15.00 443 928.5 130 900 ü ü C A 70 A LABEL
    81750 445/45 R19.5
    160J 9000
    N/A
    100 15.00
    14.00
    431,7
    894,4
    131 900 ü ü C A 72 B LABEL
    MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE M+S SNOW FLAKE EU TIRE LABEL
    SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
    82300 385/65 R22.5 160K (158L) 9000
    (8500)
    N/A

    110 (120)


    11,75 12,25 378 1083 130 900 ü ü B A 69 A LABEL
    82400 385/55 R22.5 160K (158L) 10000
    (8500)
    N/A 110 (120)
    11,75 12,25 386 996 130 900 ü ü C A 70 A LABEL
    82301 385/65 R22.5 164K (158L)

    10000 (8500)

    N/A 110 (120)
    11,75 12,25 381.6 1082.3 130 900 ü ü B A 69 A LABEL
