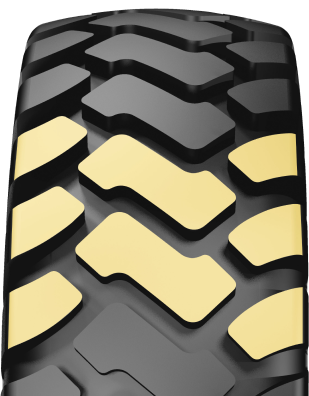

SM-70

Developed for loader applications. Delivers optimized performance on all terrains. The special compound and aggressive design of the tread pattern enhances handling throughout its exceptionally long life. Provides outstanding resistance to cuts and wears.

SM-70 (L3)

TECHNICAL HIGHLIGHTS

  • Provides outstanding resistance to cuts and wears.

  • Specifically designed to offer ultimate performance when excellent traction is needed.

  • SM-70 (L3)

    ALL SIZES

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD260 15.5-25 12 TL 168 / A2 12.00/1.3 12.00/1.3 (DC)(1) 1277 394 581 3703 58 8960 5600 4760 10080 8120 7560
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)) SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD362 17.5-25 16 TL 177 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 69 11680 7300 6205 13140 10585 9855
    LD364 17.5-25 20 TL 181 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 83 13200 8250 7010 14850 11960 11135
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD462 20.5-25 20 TL 186 / A2 17.00/2.0 17.00/2.0 IF (2) 1492 520 669 4327 65 15200 9500 8075 17100 13775 12825
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD560 23.5-25 20 TL 191 / A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 54 17440 10900 9265 19620 15805 14715
    LD562 23.5-25 24 TL 196 / A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 69 20000 12500 10625 22500 18125 16875
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD663 26.5-25 28 TL 203 / A2 22.00/3.0 22.00/3.0 IF (2) 1750 673 775 5075 69 24800 15500 13175 27900 22475 20925
    LD665 26.5-25 32 TL 206 / A2 22.00/3.0 22.00/3.0 IF (2) 1750 673 775 5075 80 27200 17000 14450 30600 24650 22950
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD762 29.5-25 28 TL 207 / A2 25.00/3.5 25.00/3.5 IF (2) 1873 750 825 5432 62 28000 17500 14875 31500 25375 23625
    LD764 29.5-25 32 TL 210 / A2 25.00/3.5 25.00/3.5 IF (2) 1873 750 825 5432 69 30400 19000 16150 34200 27550 25650
