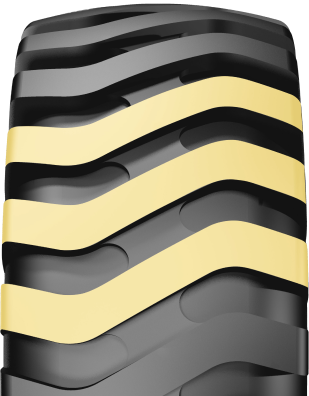

Developed for loader applications. Delivers outstanding grip in construction sites thanks to its non-directional tread pattern design. The tread compound ensures excellent cut and chip resistance. Provides outstanding durability thanks to its solid tread center structure and strong nylon carcass.
It delivers outstanding gripping in construction sites thanks to its non-directional tread pattern design.
The tread compound provides cut and chip resistance.
High durability thanks to solid tread center structure and strong nylon carcass.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE (KG) | ||||||||
| RECOM. (INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | OFF ROAD PURPOSES | HARD IMPROVED SURFACE | ||||||||||
| SPEED (KM/H) | |||||||||||||||||
| STATIC | 10 | 25 | STATIC | 5 | 10 | ||||||||||||
| LD332 | 17.5-25 | 16 | TL | 177 / A2 | 14.00/1.5 | 14.00/1.3 (1) ; 13.00/1.4 (DC) | 1348 | 445 | 610 | 3909 | 62 | 11680 | 7300 | 6205 | 13140 | 10585 |
9855 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE (KG) | ||||||||
| RECOM. (INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | OFF ROAD PURPOSES | HARD IMPROVED SURFACE | ||||||||||
| SPEED (KM/H) | |||||||||||||||||
| STATIC | 10 | 25 | STATIC | 5 | 10 | ||||||||||||
| LD432 | 20.5-25 | 20 | TL | 186/ A2 | 17.00/2.0 | 17.00/2.0 IF (2) | 1492 | 520 | 669 | 4327 | 65 | 15200 | 9500 | 8075 | 17100 | 13775 | 12825 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE (KG) | ||||||||
| RECOM. (INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | OFF ROAD PURPOSES | HARD IMPROVED SURFACE | ||||||||||
| SPEED (KM/H) | |||||||||||||||||
| STATIC | 10 | 25 | STATIC | 5 | 10 | ||||||||||||
| LD530 | 23.5-25 | 20 | TL | 191/ A2 | 19.50/2.5 | 19.50/2.5 IF (2) | 1617 | 597 | 720 | 4689 | 54 | 17440 | 10900 | 9265 | 19620 | 15805 | 14715 |
| LD532 | 23.5-25 | 24 | TL | 196/ A2 | 19.50/2.5 | 19.50/2.5 IF (2) | 1617 | 597 | 720 | 4689 | 69 | 20000 | 12500 | 10625 | 22500 | 18125 | 16875 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE (KG) | ||||||||
| RECOM. (INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | OFF ROAD PURPOSES | HARD IMPROVED SURFACE | ||||||||||
| SPEED (KM/H) | |||||||||||||||||
| STATIC | 10 | 25 | STATIC | 5 | 10 | ||||||||||||
| LD635 | 26.5-25 | 28 | TL | 203/ A2 | 22.00/3.0 | 22.00/3.0 IF (2) | 1750 | 673 | 775 | 5075 | 69 | 24800 | 15500 | 13175 | 27900 | 22475 | 20925 |
| LD637 | 26.5-25 | 32 | TL | 206/ A2 | 22.00/3.0 | 22.00/3.0 IF (2) | 1750 | 673 | 775 | 5075 | 80 | 27200 | 17000 | 14450 | 30600 | 24650 | 22950 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE (KG) | ||||||||
| RECOM. (INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | OFF ROAD PURPOSES | HARD IMPROVED SURFACE | ||||||||||
| SPEED (KM/H) | |||||||||||||||||
| STATIC | 10 | 25 | STATIC | 5 | 10 | ||||||||||||
| LD732 | 29.5-25 | 28 | TL | 207/ A2 | 25.00/3.5 | 25.00/3.5 IF (2) | 1873 | 750 | 825 | 5432 | 62 | 28000 | 17500 | 14875 | 31500 | 25375 | 23625 |
| LD734 | 29.5-25 | 32 | TL | 210/ A2 | 25.00/3.5 | 25.00/3.5 IF (2) | 1873 | 750 | 825 | 5432 | 69 | 30400 | 19000 | 16150 | 34200 | 27550 | 25650 |
| LD735 | 29.5-25 | 34 | TL | 212/ A2 | 25.00/3.5 | 25.00/3.5 IF (2) | 1845 | 750 | 825 | 5479 | 76 | 32000 | 20000 | 17000 | 36000 | 29000 | 27000 |
