LH100 Ecoplanet is a free rolling trailer tire specifically designed for fuel efficiency. It provides exceptional wet grip performance. Its strong carcass structure ensures longevity and reduces irregular wear.

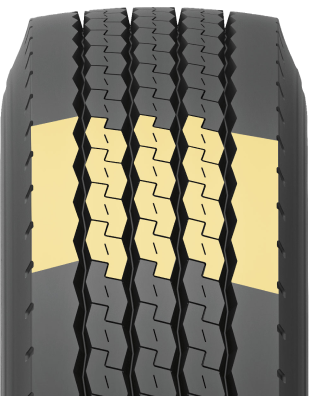

Five circumferential blocks provide excellent cornering stability.
Optimized pattern design and specially developed tread compound decreases fuel consumption.
Z-shaped block structure provides excellent handling on wet road.
Special angled circumferential grooves minimize pebble penetration while allowing quick and efficient water drainage.
Excellent carcass structure is suitable for retreading several times.
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED INDEX | LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 80304 | 215/75 R17.5 | 135/133J | 4360 | 8240 | 100 | 6.00 | 6.75 | 210 | 773 | 125 | 850 | ü | ü | C | A | 69 | A | https://eprel.ec.europa.eu/qr/460304 |
| 80404 | 235/75 R17.5 | 143/141J
(144/144F) |
5450
(5600) |
10300
(11200) |
100
(80) |
6.75 | 7.50 | 236 | 800 | 127 | 875 | ü | ü | D | A | 69 | A | https://eprel.ec.europa.eu/qr/460325 |
| 81504 | 245/70 R17.5 | 143/141J
(146/146F) |
5450
(6000) |
10300
(12000) |
100
(80) |
7,5 | 6,75 | 247 | 796 | 125 | 860 | ü | ü | D | B | 69 | A | https://eprel.ec.europa.eu/qr/460392 |
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED INDEX | LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 81524 | 245/70 R19.5 | 141/140J | 5150 | 10000 | 100 | 7,5 | 6,75 | 251 | 845 | 125 | 860 | ü | ü | D | B | 69 | A | https://eprel.ec.europa.eu/qr/460418 |
| 81554 | 265/70 R19.5 | 143/141J | 5450 | 10300 | 100 | 7,5 | 6,75 , 8,25 | 259 | 867 | 123 | 850 | ü | ü | D | B | 69 | A | https://eprel.ec.europa.eu/qr/460450 |
| 81614 | 285/70 R19.5 | 150/148J | 6700 | 12600 | 100 | 8,25 | 7.50 , 9.00 | 283 | 893 | 131 | 900 | ü | ü | D | B | 73 | B | https://eprel.ec.europa.eu/qr/460480 |
