GY800 is designd specificaly for steering position but it could be also used at idle axl position depending on operating conditions and vehicle type. Special compound of GY800 is designed to withstand the challenging conditions of construction sites and off-road use, while simultaneously provide perfect highway performance with extended mileage and improved fuel efficiency features.

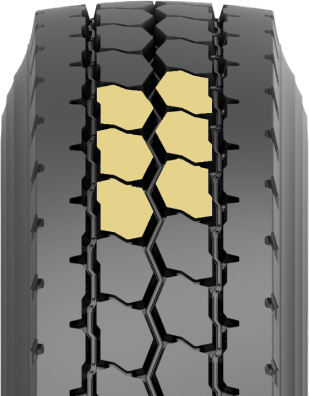

Optimized tread profile improves resistance aganinst irregular wear by distributing pressure equally under heavy load.
Wide and closed shoulder structure improves lateral balance and damage resistance.
Stone ejectors among the blocks avoid pebble penetration inside groves.
Three circumferential grooves improve handling and traction by effectively discharging water, mud and snow.
Specially engineered tread compound and wide blocks provide resistance to wears and cuts.
Zigzag block structure offers outstanding handling and braking performance on roads and construction sites.
Strong and durable carcass is suitable for retreading multiple times to maximize service life.
Interconnected blocks provide a balanced drive on road, while increasing durability on site conditions.
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED INDEX | LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 81357 | 13 R22.5 | 156/150K | 8000 | 13400 | 110 | 9,75 | 9,00 | 323 | 1135 | 127 | 875 | ü | ü | D | B | 72 | B | LABEL |
| 82207 | 295/80 R22.5 | 152/148L | 7100 | 12600 | 120 | 9,00 | 8,25 | 296.8 | 1051.1 | 125 | 860 | ü | ü | D | B | 72 | B | LABEL |
| 82257 | 315/80 R22.5 | 156/150K | 8000 | 13400 | 110 | 9,00 | 9,75 | 311 | 1085 | 125 | 850 | ü | ü | D | B | 72 | B | LABEL |
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED INDEX | LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 80607 | 12.00 R24 TL | 160/157K | 9000 | 16500 | 110 | 8,50 | 9.00 | 316.3 | 1219.1 | 131 | 900 | ü | ü | D | B | 72 | B | LABEL |
| 80609 | 12.00 R24 TT | 160/157K | 9000 | 16500 | 110 | 8,50 | 9.00 | 316.3 | 1219.1 | 131 | 900 | ü | ü | D | A | 71 | B | LABEL |
