INDUSTRIAL & OTR TIRES

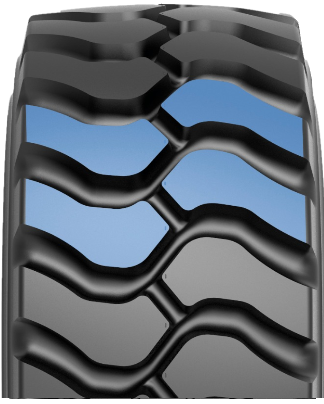

StxTD41 Radial

It is a high tread depth tire designed for wheel loaders. The tread pattern and carcass structure are especially designed for marble quarries and mine sites. With its specially developed tread mixture and reinforced heel structure, it provides high performance in fields where traction and grip are high.

StxTD41 (L4) Radial

TECHNICAL HIGHLIGHTS

  • Wider blocks in the center provide durability in any direction on any type of ground.

  • It offers self-cleaning feature with its large groove angles and wide openings.

  • With its non-directional, deep-toothed, wide-span tread pattern, it provides excellent traction in all directions. Meanwhile, the special tread compound provides excellent resistance to cuts and heat, and provides long life.

  • StxTD41 (L4) Radial

    ALL SIZES

    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    LR506 26.5 R25 ** TL 209 A2 / 193 B 5 STD 22.00/4.0 22.00/4.0 IF 1755 705 772 5195
    LR606 29.5 R25 *** TL 221 A2 / 217 A8 5 STD 25.00/4.5 25.00/4.5 IF 1899 781 829 5585
