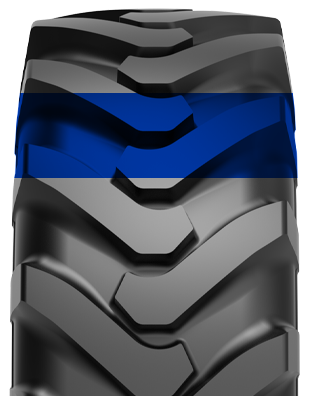

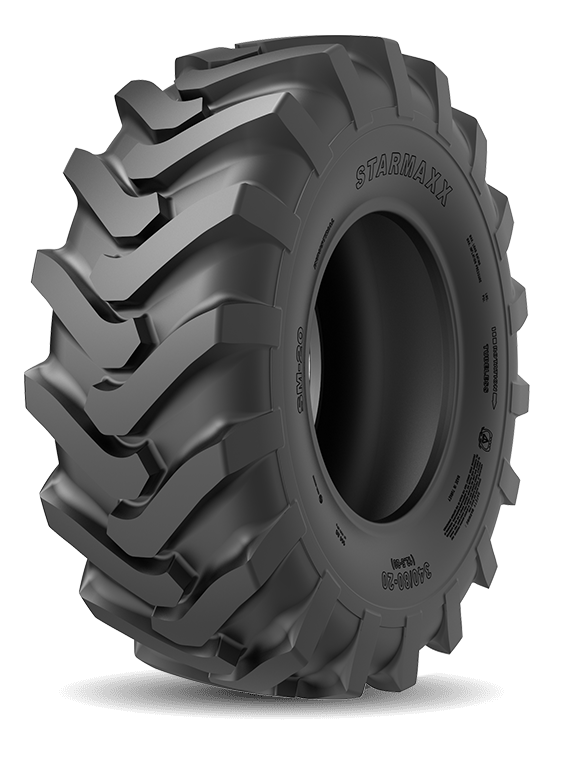

SM-20 is a long-lasting, damage-resistant tire that provides excellent traction and is developed for the front axle of excavators and loaders used in excavation works and for all axles of other compact construction machines.
With an optimized tread width, it provides precise maneuverability, balance, and long service life.
With its specially developed compound, wide and deep tread blocks provide superior traction on all types of terrain and resistance against cuts, chunking, and wear. It offers long service life.
Its reinforced sidewall provides resistance against cuts and punctures.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | ||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC RADIUS CIRCLE (MM) | SPEED (KM/H) | |||||||||||
| 10 | 15 | 20 | 25 | 30 | 40 | ||||||||||||
| 7059 | 340/80-20 | 14 | TL | 144 / A8 | 11 | 11 SDC; 12; 12SDC; W10; W11 | 1075 | 350 | 495 | 3192 | 58 | 3500 | 3160 | 3050 | 2970 | 2910 | 2800 |
