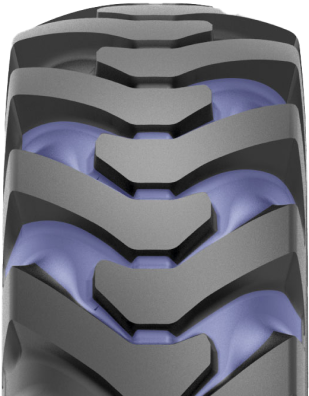

Designed for grader and construction machinery applications. Offers excellent durability thanks to its solid tread center structure. Strong nylon carcass structure promises resistance against cuts, chunks and tears. Delivers outstanding traction in challenging conditions with its open shoulders.
Strong nylon carcass structure promise resistance to cuts, chunks and tears.
Open shoulders delivers outstanding traction in challenging conditions.
Very durable thanks to its solid tread center structure.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi)
|
LOAD CAPACITY PER TIRE(KG) | |||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM)
|
SPEED (KM/H) | ||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 50 | ||||||||||||
| GR014
|
13.00-24 | 12 | TT | 143 / A8 | 8.00 TG SDC | 9.00/1.5 (DC) (1) ; 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 44 | 3080 | 2970 | 2890 | 2835 | 2780 | 2725 | 2480 |
| GR015
|
13.00-24 | 12 | TL | 143/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) (1) ; 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 44 | 3080 | 2970 | 2890 | 2835 | 2780 | 2725 | 2480 |
| GR037
|
13.00-24 | 16 | TL | 151/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) - 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 51 | 3900
|
3760
|
3660
|
3560
|
3520
|
3450 | 3140 |
| GR038
|
13.00-24 | 16 | TL | 151/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) - 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 51 | 3900
|
3760
|
3660
|
3560
|
3520
|
3450 | 3140 |
| GR016
|
14.00-24
|
16
|
TT
|
153/ A8
|
8.00 TG SDC
|
9.00/1.5 (DC) (1) ; 10.00/VA SDC
|
1348
|
362
|
608
|
3909
|
54
|
4125
|
3980
|
3870
|
3800
|
3725
|
3650
|
3325
|
| GR017
|
14.00-24
|
20
|
TL
|
153/ A8
|
8.00 TG SDC
|
9.00/1.5 (DC) (1) ; 10.00/VA SDC
|
1348
|
362
|
608
|
3909
|
54
|
4125
|
3980
|
3870
|
3800
|
3725
|
3650
|
3325
|
