Harvester and Tractor tire

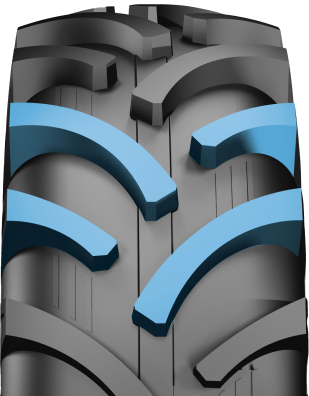

Unique lug design and geometry efficiently keep the tread pattern, offer outstanding traction and self-cleaning features. Strong carcass structure supports high load capacity.
Strong durable carcass structure and special tread compound improves resistance against cuts and wears.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | |||
| RECOMMENDED (INCH) | PERMITTED (INCH) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | |||||
| HM617 | 23.1-26 | 12 | TT | 153/A6 | DW20B | - | 1650 | 590 | 740 | 4910 |
| HM620 | 23.1-26 | 14 | TT | 156/A6 | DW20B | - | 1650 | 590 | 740 | 4910 |
| HM624 | 23.1-26 | 18 | TT | 162/A6 | DW20B | - | 1650 | 590 | 740 | 4910 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | |||
| RECOMMENDED (INCH) | PERMITTED (INCH) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | |||||
| HM647 | 23.1-30 | 12 | TT | 151/A6 | DW20B | - | 1710 | 592 | 770 | 5090 |
| HM650 | 23.1-30 | 14 | TL | 154/A6 | DW20B | - | 1710 | 592 | 770 | 5090 |
| HM654 | 23.1-30 | 18 | TL | 160/A6 | DW20B | - | 1710 | 592 | 770 | 5090 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | |||
| RECOMMENDED (INCH) | PERMITTED (INCH) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | |||||
| TR590/TR591 | 20.8-38 | 14 | TT/TL | 159/A6 | W18L | W16L | 1836 | 545 | 848 | 5550 |
| TR592/TR593 | 20.8-38 | 16 | TT/TL | 163/A6 | W18L | W16L | 1836 | 545 | 848 | 5550 |
