Agricultural Tires

TR-20

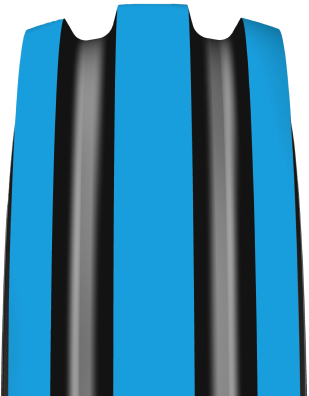

Ideal 2WD tractor front tire with its special 3Rib design.

TR-20

TECHNICAL HIGHLIGHTS

  • The rib design provides ultimate steering performance during soil tillage operations and on soft and cultivated areas.

  • Specially formulated tread compound and all steel carcass structure offer longevity.

  • Flexible carcass structure prevents sinking.

  • Special tread design provides efficient self-cleaning feature.

TR-20

ALL SIZES Agricultural Tires

MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
TS192 6.00-16 6 TT 88 / A6 4.50E 4.00E, 5.00F 735 165 338 2205
MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
TS260 7.50-16 8 TT 103 / A6 5.50F 5.00F, 5K, 6.00F 805 205 367 2415
MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
TS290 9.00-16 8 TT 111 / A6 W8 6.00F, W7, W8L 855 234 392 2556
MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
TS310 11.00-16 8 TT 118 / A6 WW10L W8, W8L 965 315 437 2876
INFLATION PRESSURE (PSI/BAR) LOAD CAPACITY PER TIRE, KG
SPEED (KM/H)
10 15 20 25 30 40
41 / 2,8 805 765 725 615 535 430
45 / 3,1 825 785 745 635 550 440
48 / 3,3 840 800 755 645 560 450
45 / 3,1 1200 1144 1080 920 800 640
49 / 3,4 1245 1190 1120 955 830 665
54 / 3,7 1315 1250 1180 1005 875 700
38 / 2,6 1495 1425 1345 1145 995 795
42 / 2,9 1565 1495 1410 1205 1045 835
45 / 3,1 1635 1560 1475 1255 1090 875
30 / 2,1 1845 1760 1660 1415 1230 985
33 / 2,3 1900 1810 1710 1455 1265 1015
36 / 2,5 1980 1890 1780 1520 1320 1055
