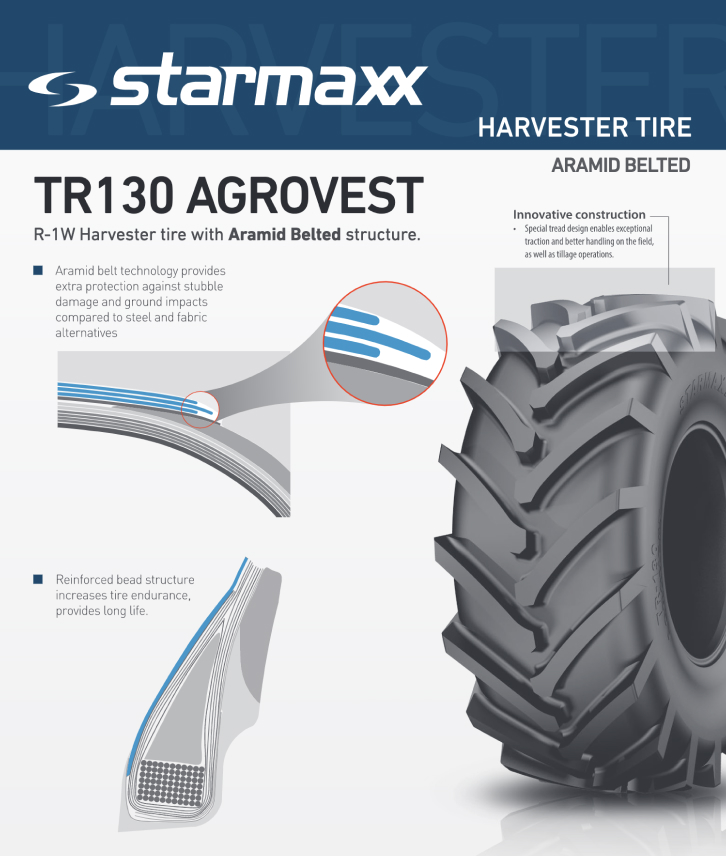

R-1W Harvester tire with aramid belted structure.
Aramid belt technology provides extra protection against stubble damage compared to steel and fabric alternatives.

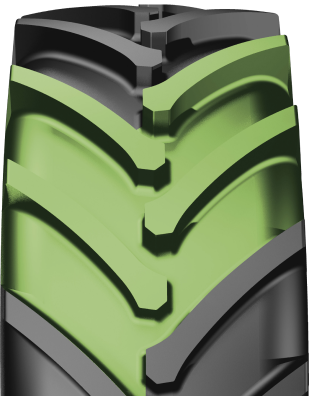

Special tread design and extra reinforced carcass enable exceptional traction and better handling not only for harvesters but also for tillage operations.
Special tread compound offers high resistance against punctures.
Perfect performance under heavy loads with lower pressure compared to traditional radial tire construction.
Wider footprint and optimized lug angle minimize soil compaction and avoids crop damage.
Elastic structure absorbs impacts and yields better flotation.
| MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS(W/LOAD) | |||
| RECOMMENDED (INCH) | PERMITTED (INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RP219 | 620/75 R26 REINFORCED | TL | 166 A8 / B | DW20B | - | 1565 | 649 | 692 | 4614 |
| MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS(W/LOAD) | |||
| RECOMMENDED(INCH) | PERMITTED(INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RP211 | 620/75 R26 | TL | 166 A8 / B | DW20B | - | 1573 | 636 | 695 | 4634 |
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | |||
| RECOMMENDED (INCH) | PERMITTED (INCH) | OUTER DIAMETER (MM) | SECTION WIDTH (MM) | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RP230 | 620/75 R30 REINFORCED | TL | 169 A8 / B | DW20B | - | 1693 | 623 | 753 | 5022 |
| MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS(W/LOAD) | |||
| RECOMMENDED(INCH) | PERMITTED(INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RP231 | 620/75 R30 | TL | 169 A8 / B | DW20B | - | 1678 | 638 | 747 | 4982 |
| MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS(W/LOAD) | |||
| RECOMMENDED(INCH) | PERMITTED(INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RP340 | 650/75 R32 REINFORCED | TL | 172 A8 / B | DW21B | DW20B/DW23B | 1777 | 658 | 792 | 5282 |
| MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS(W/LOAD) | |||
| RECOMMENDED(INCH) | PERMITTED(INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RP341 | 650/75 R32 | TL | 172 A8 / B | DW21B | DW20B/DW23B | 1778 | 658 | 792 | 5284 |
| MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS(W/LOAD) | |||
| RECOMMENDED(INCH) | PERMITTED(INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RL550 | 800/65 R32 REINFORCED | TL | 178 A8 / B | DW27B | DW25B / DH27B | 1855 | 794 | 823 | 5489 |
| MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS(W/LOAD) | |||
| RECOMMENDED(INCH) | PERMITTED(INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
| RL551 | 800/65 R32 | TL | 178 A8 / B | DW27B | DW25B / DH27B | 1870 | 785 | 829 | 5529 |
