Agricultural Tires

RM-50

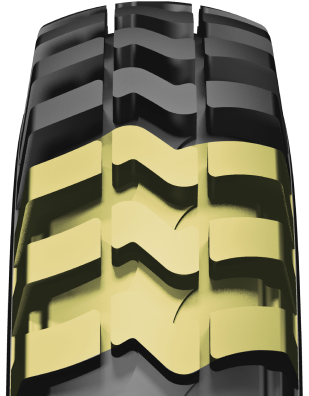

Traction type trailer tire with high resistance.

RM-50

TECHNICAL HIGHLIGHTS

  • Wide and deeper tread design provides high resistance against cuts and tread fatigue.

  • Special tread and carcass structure offers high load capacity.

RM-50

ALL SIZES Agricultural Tires

MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS(W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
RM094 9.00-16 12 TL 125/A6 6.00F 5.50F , 6LB 881 247 394 2675
RM096 9.00-16 12 TT 125/A6 6.00F 5.50F , 6LB 881 247 394 2675
RM097 9.00-16 14 TT 128/A6 6.00F 5.50F , 6LB 881 247 394 2675
MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS(W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
N/A 11.5/80-15.3 16 TL 141 / A8 9.00 - 845 290 2600 382
INFLATION PRESSURE (PSI/BAR) LOAD CAPACITY PER TIRE, KG
SPEED (KM/H)
10 20 25 30 40
49 / 3.4 1895 1675 1570 1470 1320
52 / 3.6 1940 1710 1605 1500 1350
58 / 4.0 2130 1880 1765 1650 1485
57 / 3.9 2020 1785 1675 1565 1410
61 / 4.2 2115 1865 1750 1640 1475
67 / 4.6 2320 2050 1925 1800 1620
67 / 4.6 2160 1910 1795 1675 1510
72 / 5.0 2365 2090 1960 1833 1650
80 / 5.5 2515 2225 2085 1950 1755
75 / 5,2 3080 2770 2615 2465 2200
81 / 5,6 3370 3040 2870 2700 2410
90 / 6,2 3710 3340 3150 2970 2650
